SNDS!?! It means Soundset, the oldest soundset was activated by sound. The newer one by pressure. PRSS doesn’t sound good…

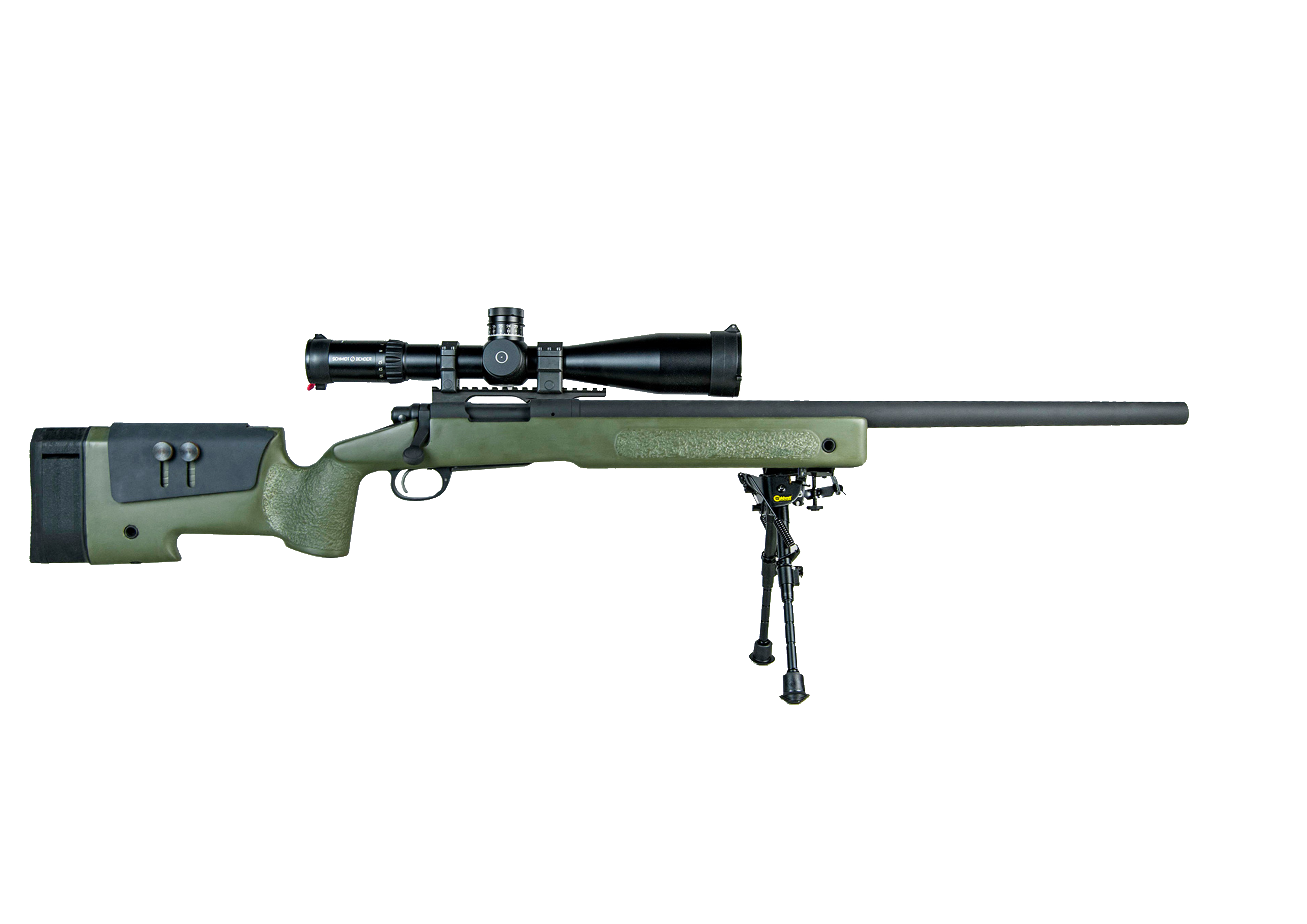

The SNDS weaponset has been designed for all those airsoft spring replicas. From shotguns to sniper rifles.

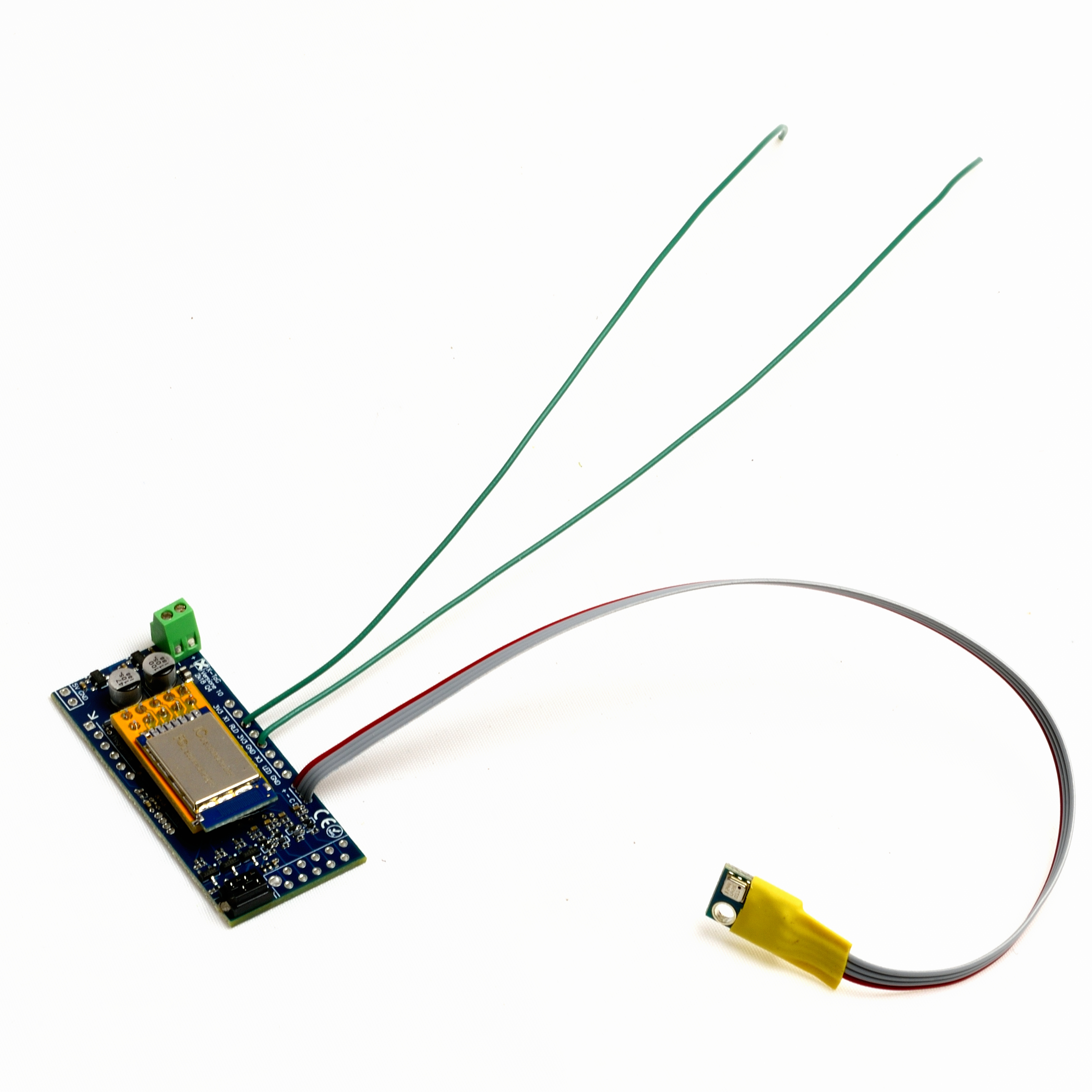

Just 2 wires

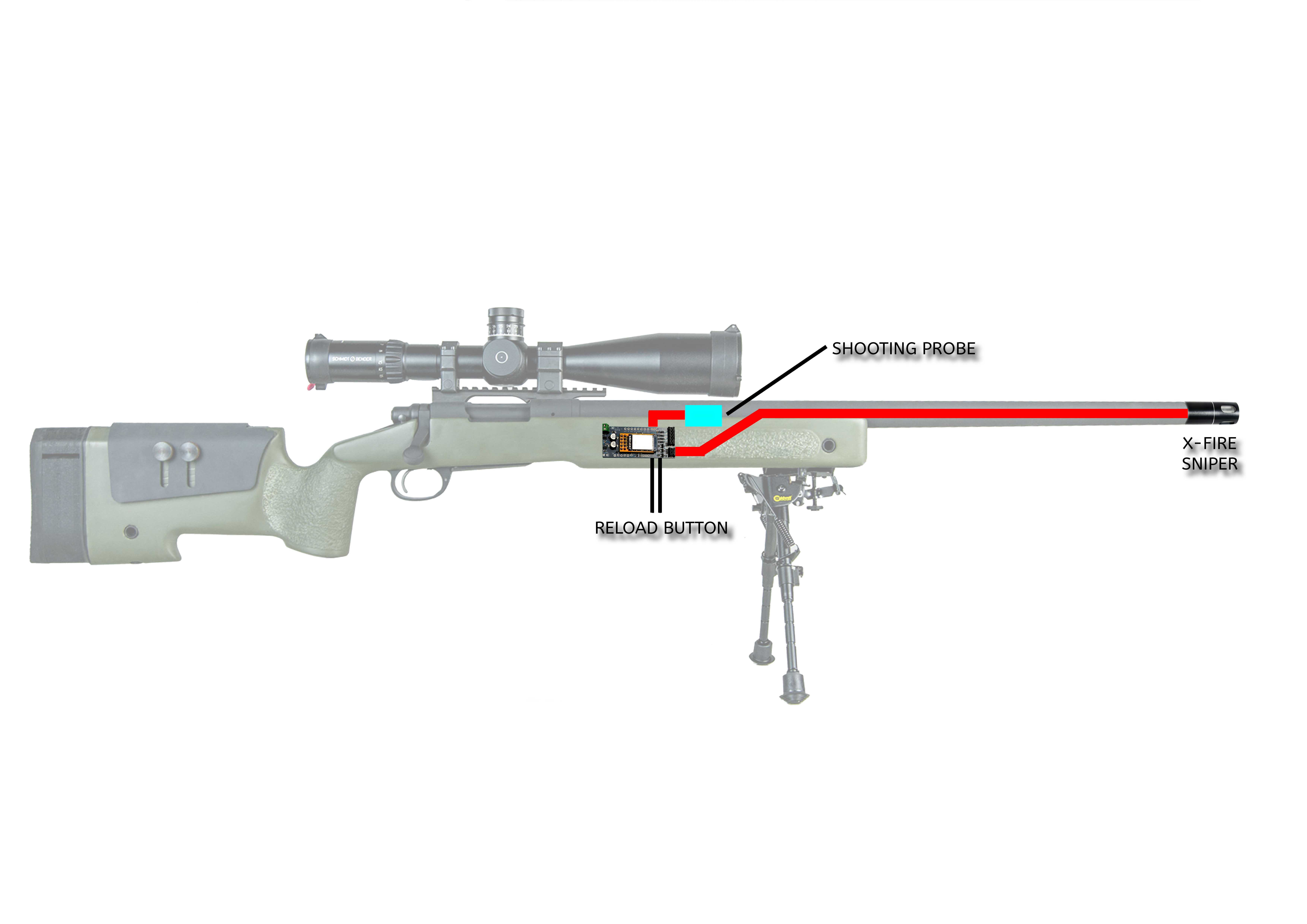

Yes just 2 wires for the reload magazine button.

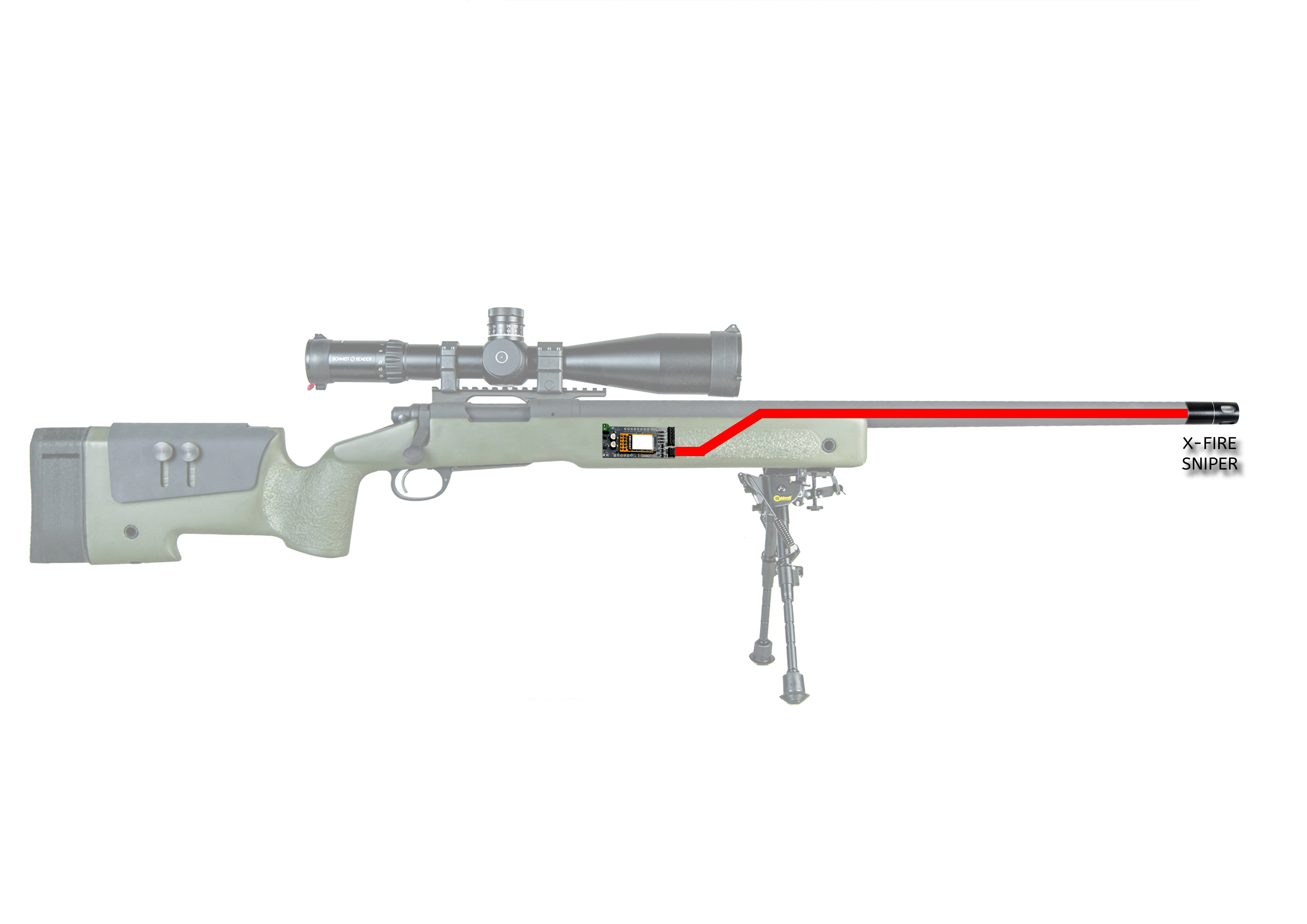

After assembling the X-Fire or other emitter, the outer barrel should be capped with some foam.

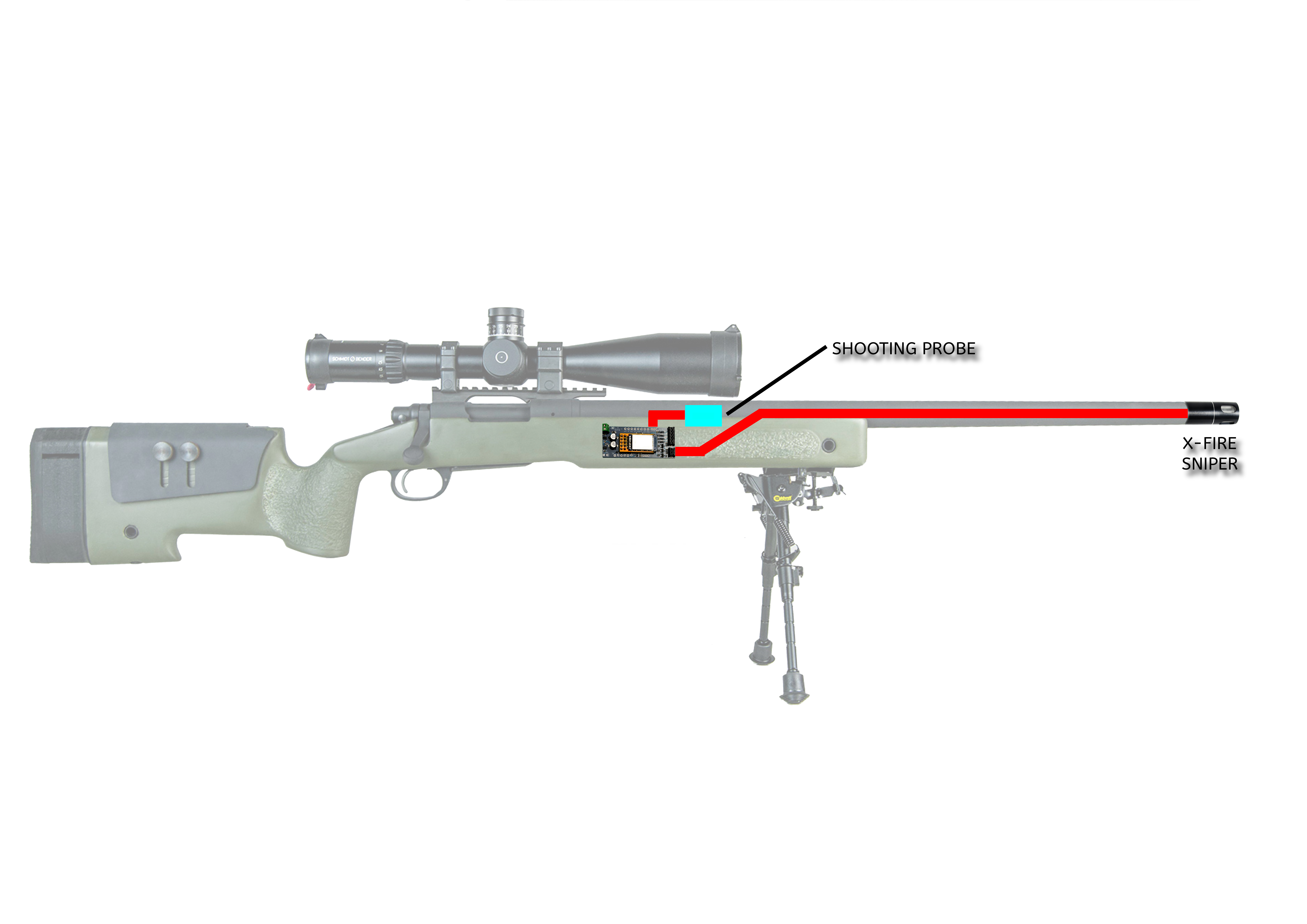

The pressure sensor has to be inserted in the outer barrel between the piston head and the foam cap.
The kit is battery powered with a Li-Po 7.4V and it is not included.
Small is better
As opposed to a lot of lasertag electronic kit the X-TaG weaponset has been designed from the very first time to be the smallest possible.

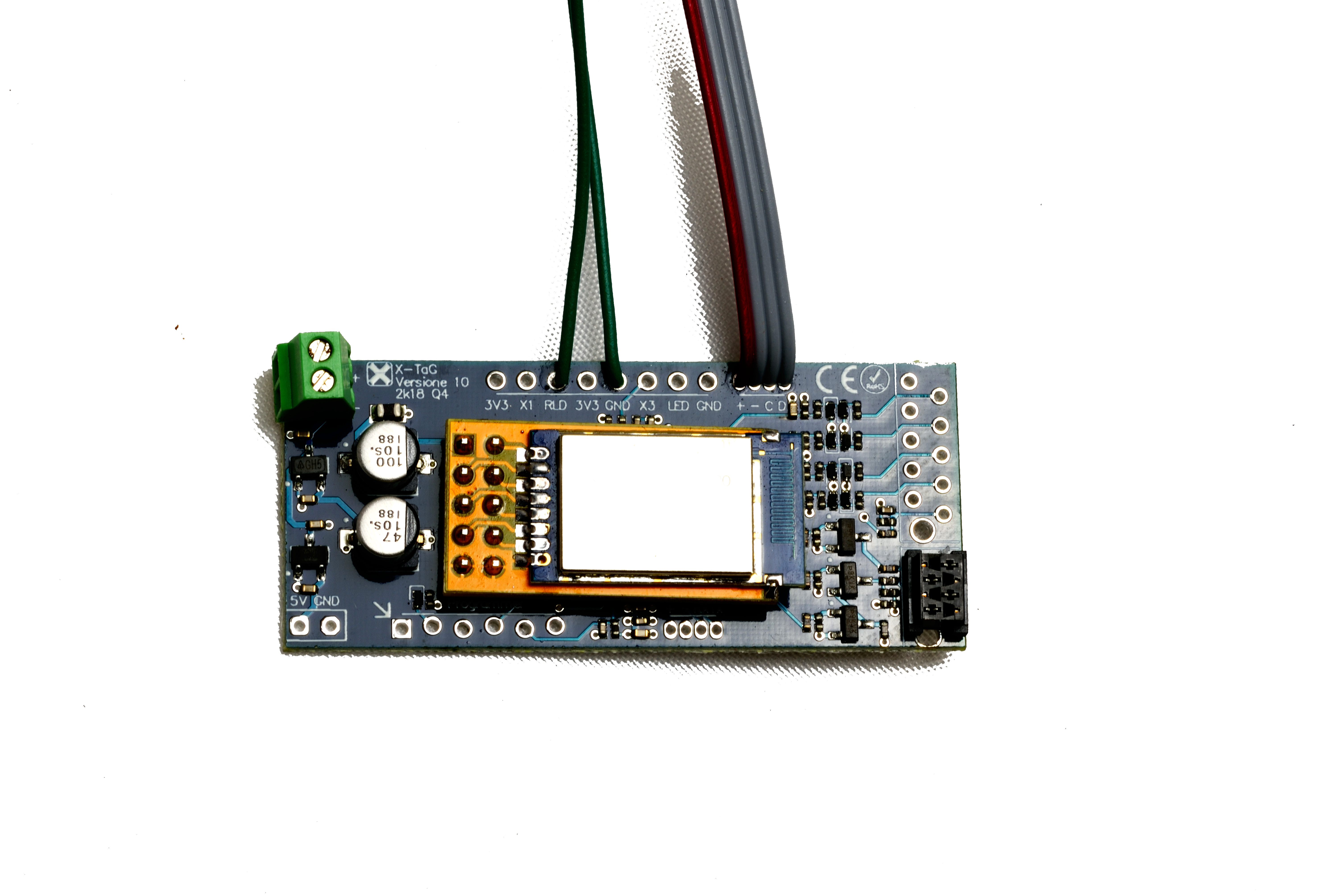

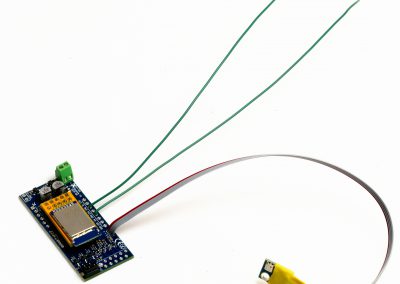

The board size is: 25 x 57 mm
The pressure sensor is: 10 x 15 mm
Pairing with the Headset
All the weaponset must be paired to an Headset. If not they are simply disabled.
To pair an X-TaG replica is very simple: – Turn on the Headset; – Keep pressed the reload button while turning on the replica; – Aiming to an Headset sensor and release the reload button; – The Headset will blink twice and the replica will be paired.
